HM-1000FB/1200FB/1400FB

HM-1000FB/HM-1200FB
HM-1200FB2/HM-1400FB/HM-1400FB2/HM-1600FB

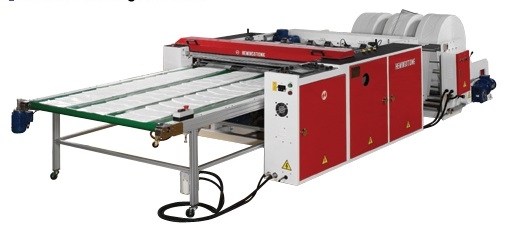

HIGH SPEED BOTTOM SEALING BAG MAKING MACHINE BY FLYING KNIFE SYSTEM

Using the design by flying knife cutting off, the knife is easy to be replaced.

The sealing design is heated by two-sided heating lines, to achieve a strong sealing line.

Providing multi producing lines for non-printing bag.

The bag sending design providing the non-overlapping sealing line system(This design isn't included in the two servo motors series).

Optional for surface friction unwind device with auto lift-up unit.

Optional for two servo motors of film sending to make two lines printing bag.

Other options: punching unit; V-type sealing etc.

MULTI ROWS UNWINDER WITH LIFT-UP UNIT(OPTIONAL)

Able to be put multi film rollers, and sending films synchronously.

Automatic tension control.

Auto pneumatic lift-up unit.

Auto stop system for film lacking.

SPECIFICATIONS:

Model
HM-1000FB
HM-1200FB
HM-1200FB2
HM-1400FB
Bag Size (mm)
Width(Each line)
900
1100
500×2
1300
Length
300~3000
300~3000
300~3000
300~3000
production Speed Cycle/Min
100
90
90
90
Thickness of Film (mm)
0.02x2~0.25x2
0.02x2~0.25x2
0.02x2~0.25x2
0.02x2~0.25x2
Heaters
1KW
1.1KW
1.1KW
1.2KW
Power Required
8KW
8KW
9KW
9KW
Machine Dimensions
L(M)
7.3
7.3
7.3
7.3
W(M)
1.8
2.0
2.0
2.2
H(M)

1.3

1.3

1.3

1.3

Machine weight(KG)
2000
2200
2200
2300
Gross Weight(KG)
2600
2800
2800
2900
Air Compressor(not included)
5HP
5HP
5HP
5HP



Model
HM-1400FB2
HM-1600FB
HM-1400FB-S3
HM-1600FB-S3
Bag Size (mm)
Width(Each line)
600×2
1500
1300
1500
Length
300~3000
300~4000
300~4000
300~4000
production Speed Cycle/Min
90
80
90
90
Thickness of Film (mm)
0.02x2~0.25x2
0.02x2~0.25x2
0.02x2~0.25x2
0.02x2~0.25x2
Heaters
1.2KW
1.4KW
1.2KW
1.4KW
Power Required
10KW
10KW
14KW
15KW
Machine Dimensions
L(M)
7.3
7.3
11
11
W(M)
2.2
2.4
2.3
2.5
H(M)

1.3

1.3

2.05

2.05

Machine weight(KG)
2300
2500
4100
4500
Gross Weight(KG)
2900
3100
6000
6500
Air Compressor(not included)
5HP
5HP
5HP
5HP

All our suppliers has ISO 9001-2000 Quality Management System and CE Quality Standarts certifications.
