HM-830MF/ 1030MF

HM-830MF/ 1030MF

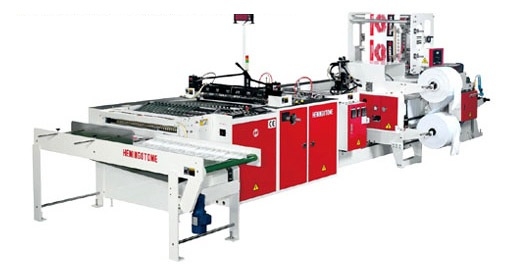

Super High Speed Soft Loop Handle & Die Cut Handle Bag Making Machine

This is the cutting edge design super high-speed soft loop handle & die cut handle bag making machine that we have researched and developed over a decade.



The designs of the entire production processes are the results of brainstorming and nonstop improvement. This machine will highly enhances production efficiency, reduces the production cost and allows the buyer to gain a significant margin of profit in the market.

DIE CUT HANDLE BAG
SOFT LOOP HANDLE BAG

MANUFACTURE OF SOFT LOOP CARRIER BAGS
At the rear are two unwinding stations for the polyethylene handle film. The film width is identical to the loop length. The film is cut into narrow strips, and fed into the top fold. The flexible handle film feed, push out and welding systems are separately driven by three servo motors. The roll of film is fed, cut and automatically welded to the precise center of the carrier bag.

AUTO CONVEYOR TABLE
The conveyor belt will automatically decelerate while producing soft loop handle bags. The finished product will fall in line for convenience collection. The conveyor belt is stopped while producing the die cut handle bag. The finished product is pc by pc overlapped on the conveyor table. The machine will auto stop when bag quantity reached, and the conveyor table will move again for the next stack.

PHOTO-CELL CONTROL
This series of machines uses Erwin Sick Photocell for precise control of image to the side weld.

PRE-WARMING STATION
Additional stabilization of the side weld in the area of the bottom gusset by the pre-sealing station for the four layers of film.

HEM SEALING SYSTEM
The adjustable hem sealing available after top folding, seals top fold longitudinally and continously. Bag size is easily changed, no limit.

SPECIFICATIONS:

Model
HM-830MF
HM-1030MF
Bag Size
width
250~650mm
250~650mm
Length
250~650mm
250~850mm
Top Folding
Max.75mm
Max.75mm
Bottom Gusseting
up to 65mm
up to 65mm
Max. production Speed (cycles/min)
120pcs
120pcs
Thickness of Film (mm)
0.045~0.09
0.045~0.09
Heaters (kW)
2.1kW x 1
0.6kW x 2
0.4kW x 6
3.1kW x 1
0.6kW x 2
0.4kW x 6
Power Required (kW)
10
11
Machine Dimensions
L(m)
8.2
8.2
W(m)
2.3
2.5
H(m)

2.1

2.1

Machine weight (kg)
3800
4200
Gross Weight (kg)
4800
5200
Air Compressor (not included)(hp)
7.5
7.5

All our suppliers has ISO 9001-2000 Quality Management System and CE Quality Standarts certifications.
