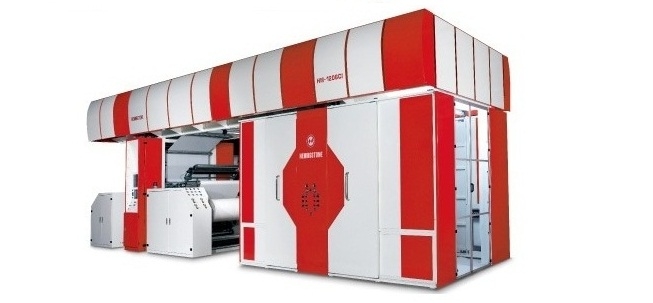

HM-1206CI

HM-1206CI

With the PLC and computer display central drum positioning, plate installation is simplified according to marks on the printing cylinders or sleeves.

Once printing length is selected on the display, the printing group(s) will be automatically positioned. When all colors are in position small adjustments can be made by remote control.

The following data must be input for each new cycle of the job.
.The printing groups which will be selected to do the printing job.
.Printing length.

The computerized pre-set system is user friendly with excellent color positioning.

The computer can remember all previous tension control settings. Once parameters of a job (e.g. tension control) are properly programmed, the job is easily repeated without further preparation.

NON-STOP UNWIND :
The unwinder is servo motor driven and has fully automatic tension control. This allows the user to control the feed speed by computer. When film rolls are used up they are automatically replaced so the printing job continues uninterrupted.
NON-STOP REWIND :
The rewinder is servo motor driven and has fully automatic tension control. This allows the user to control the feed speed of the film feed by computer. When the roll reaches the pre-set length or needs to be exchanged it is automatically changed without interruption.
REMOTE BREAKDOWN DIAGNOSIS:
An internet prompt service provides the fastest and most convenient solution for inspecting breakdowns. For this purpose, the printing machine is equipped with a modem that allows us to instantly perform online diagnosis and trouble shooting.

QUICK HALFTONE PROCESS SYSTEM:
42 servo motors on this machine allow the computer to quickly process halftone jobs, reducing wasted materials. Settings can be memorized and easily recalled in the future.

PRINTING STATIONS:
Six servo motors at each printing station control precision and automatically refine printing patterns. 300 memory sets provide recall for all tension controls. Repeat jobs are easy and extremely convenient.

AUTOMATIC SLEEVE CHANGE FOR MACHINE PLATE:
The sleeve change system is extremely fast and reliable. By automatically replacing sleeves the system reduces operating procedures and faults to a minimum.

Explanation of Changeover Operations:
A Unlock the side handle in the air mandrel in order to change the
    sleeve.
B Pull the side seat apart and lower it.
C Unlock and extract sleeve.
D Install new sleeve and assemble in the pre-printing position.

SPECIFICATIONS:
Model
HM-1206CI
HM-1406CI
HM-1208CI
HM-1408CI
Printing width(mm)
1110
1310
1110
1310
Film Width(mm)
1250
1450
1250
1450
No. of colors
6
6
8
8
Printing repeat(mm)
400~900
400~900
400~900
400~900
Production speed (m/min.)
50~300
50~300
50~300
50~300
Max. heater(kW)
90
90
90
90
Main motor (kW)
11
11
11
11
Power required
125
125
125
125
M/C dimensions
L(m)
13.5
13.5
13.5
13.5
W(m)
3.0
3.2
3.0
3.2
H(m)
4.6
4.6
5.1
5.1
Air Compressor (hp) not included
5
5
5
5
Water chiller (hp) not included
15
15
15
15

All our suppliers has ISO 9001-2000 Quality Management System and CE Quality Standarts certifications.
