HM-800DT/ 1000DT

HM-800DT/ 1000DT

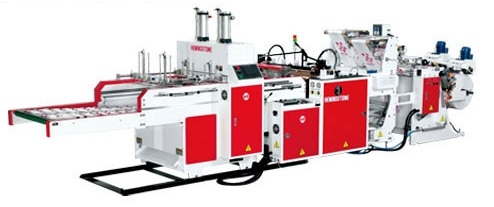

Super High Speed Fully Automatic 2 Track T-shirt Bag Making Machine

This is a special design of pratical type T-Shirt bag making machine, operating in fully automatic system. This machine including inveter motor driven system in unwind unit, EPC control for two line and finish product folding unit, providing the highest production speed and output.

Special design servo-driven bag feeding is easy to operate.

Equipped the multi auto alarms with automatic stop design.

High efficiency on production.

The whole pile of bags has the "Rocking System", which would not make the 2 pcs of bags?sealing stick together.

SEALING KNIFE "TURNOVER" DEVICE
The Newly Designed Structure of Sealing Knife

When clean the Sealing Knife, it can move the whole stack bags away, and the sealing knife can turn over for clean. This ensures the safety and keeps the maintenance easy. Meanwhile, the punching device is driven by air cylinder.

SERVO FEEDING CONTROL SYSTEM & PRINTING PHOTO CELL

The newly designed big monitor servo feeding control system can manage the "Set Up" data with high speed. The unique design printing bag control system enhance the productivity and easy to operate.

INVERTER-MOTOR TENSION CONTROL UNWINDER

The plastic roll of this unwinder is driven by inverter motor, and it can automatically change the feeding speed based on the machine's speed requirement. This is suitable for the high speed production machine, and the max. plastic roll dia. is 1200 mm.

THE EPC CONTROL SYSTEM

Whenever the film roll is not feeding in order, it could be adjusted by EPC control unit and the film feeding will be corrected to the right position. This system will enhance the productivity of machine and there will provide one set of EPC for each line.





UNIQUE REELS WITH OR WITHOUT PRINTING




SPECIFICATIONS:

Model
HM-800DT
HM-1000DT
Bag Size
width (mm)
max. 330 x 2
max. 430 x 2
Length(mm)
max. 700
max. 700
Max. Production Speed (cycles/min)
max. 300
max. 300
Thickness of Film (mm)
0.01~0.035
0.01~0.035
Heaters (kw)
7
8
Power Required (kw)
10
11
Machine Dimensions
L(m)
6.6
6.6
W(m)
1.64
1.85
H(m)

1.8

1.8

Machine weight (kg)
2500
2700
Gross Weight (kg)
900
3100
Air Compressor(not included) (hp)
10
10

All our suppliers has ISO 9001-2000 Quality Management System and CE Quality Standarts certifications.
